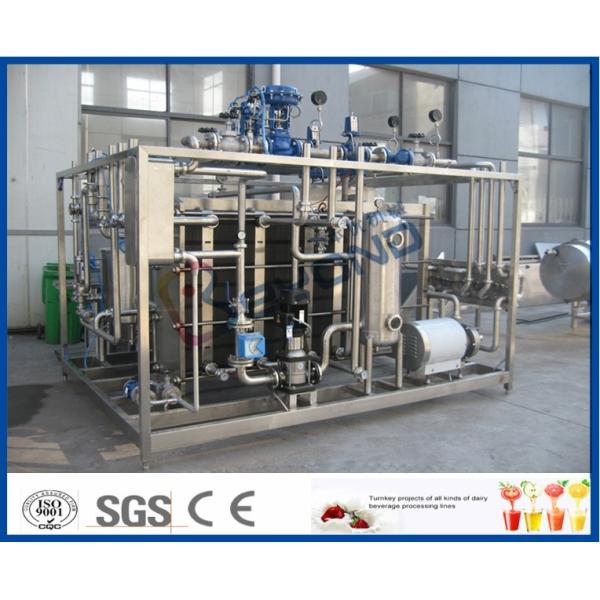

    Plc Touch Screen Milk Pasteurization Equipment With Plate Heat Exchanger

    Ask Lasest Price
    Brand Name : Beyond
    Model Number : 500L-200000L
    Certification : CE certificate/ISO9001/SGS
    Price : negotiable
    Supply Ability : 20 pcs per month
    Delivery Time : 60-90 days
    • Product Details
    • Company Profile

    Plc Touch Screen Milk Pasteurization Equipment With Plate Heat Exchanger


    Pasteurizer milk Pasteurization Equipment juice pasteurizer SUS304 500L



    Plate pasteurizer(3 sections):
    Application: This unit is used as Pasteurizer (widely used in fresh milk, milk beverage, juice, tea, alcohol, ice cream etc.), and also pre-sterilize material when producing sterilized milk (long life milk).

    Features:
    This unit can be connected with separator, homogenizer, flash evaporator & degasser etc.

    This machine has features of high heat recovery efficiency, low energy cost, compact design on the construction and easy operation, simple maintenance.


    Save time and reduce the risk of human error
    This function can produce a certain amount of milk and cream, which can be set to a certain number of liters, or it can be programmed to continue production until the storage tank is full (or the source tank is empty). If connected to separators and standardization devices, specific fat content can also be defined. It can switch to CIP and automatic operation without manual intervention.

    Process design and parameter

    Production capacity:500L-20000/H
    Technical Parameter:5℃→65℃(homogenization)→85℃(15S) →5℃
    Control type:Full-automatic control (PLC with touch screen), semi automatic.



    Equipment configuration

    A. plate heat exchanger;
    B. material-balance bucket;
    C. Hot water-balance drum;
    D. hot water pump;
    E. product pump;
    F. steam & water mixer;
    G. electricity box;
    H. stainless steel pipes and valves etc.
    I.PLC and color touch screen;


    Technical Parameter:

    ModelCapacity

    Heat exchane
    area (m²)

    Total power
    (kw)

    Steam consumption
    (kg/h)

    Dimension
    (L×W×H)mm

    Machine weight
    (kg)

    BR16-BS-0.50.555.2521200×1200×1500790
    BR16-BS-1185.2601500×1500×1800880
    BR16-BS-22 t/h1361041800×2000×1800980
    BR26-BS-33 t/h2061562000×2000×22001080
    BR26-BS-4-54-5 t/h30-4582602250×2000×22001250
    BR26-BS-6-86-8 t/h35-5084002250×2000×22001250
    BR26-BS-1010 t/h60115202800×2000×22001650
    BR35-BS-1515 t/h75117803000×2200×22002150
    BR35-BS-2020 t/h80119453300×2200×22002350

    Technical Parameter:

    ModelCapacity

    Heat exchane
    area (m²)

    Total power
    (kw)

    Steam consumption
    (kg/h)

    Dimension
    (L×W×H)mm

    Machine weight
    (kg)

    BR16-BS-0.50.555.2521200×1200×1500790
    BR16-BS-1185.2601500×1500×1800880
    BR16-BS-22 t/h1361041800×2000×1800980
    BR26-BS-33 t/h2061562000×2000×22001080
    BR26-BS-4-54-5 t/h30-4582602250×2000×22001250
    BR26-BS-6-86-8 t/h35-5084002250×2000×22001250
    BR26-BS-1010 t/h60115202800×2000×22001650
    BR35-BS-1515 t/h75117803000×2200×22002150
    BR35-BS-2020 t/h80119453300×2200×22002350
